As low as $10,998.85 Save 15% (12869)

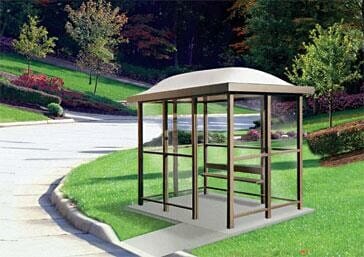

Dome Roof Shelters - One Opening
In stock
SKU
SHEL-05
Description
ADA compliant shelters are pre-fabricated for quick hand tool assembly.
- Shelter Dimensions:
- 10' x 5'
- 12' x 5'
- 15' x 5'
- 15' x 8'
- Structure Materials: Pre-fabricated aluminum, tempered glass & translucent acrylic dome
- 1 opening model available only
- Provide secure waiting ares and cost effective weather shields
- Use as outdoor smoking shelters and provide a smoke-free workplace
- Exceptional structural strength. Able to withstand 90 mph winds and snow loads up to 20 psf
- Maintenance free aluminum framing with baked-on color finish
- Aluminum back wall bench
- 1/4" clear tempered safety glass
- White translucent acrylic dome
- ADA compliant
- All openings are at least 36" wide and 84" high
- Prefabricated for quick hand tool assembly
- Crated for shipping protection
Note: All shelters require a dock and pallet jack or a heavy-duty forklift for unloading.
Specifications
SKU | 05HM5101WD-BZ | 05HM5121WD-BZ | 05HM5151WD-BZ | 05HM8151WD-BZ |
---|---|---|---|---|
Model Name | 10' x 5' Shelter | 12' x 5' Shelter | 15' x 5' Shelter | 15' x 7.6' Shelter |
Shelter Opening | 1 Opening | 1 Opening | 1 Opening | 1 Opening |
Overall Dimensions | 10'L x 5'W x 8'H | 11.5'L x 5'W x 8'H | 15'L x 5'W x 8'H | 15'L x 7.5'W x 8.75'H |
Weight | 1,245.0 | 1,350.0 | 1,685.0 | 2,000.0 |
